Fish Deboner Machine | Fish Meat Bone Separator Machine
| Model | TZ-F200 |
| Size | 900*880*950mm |
| Power | 2.2kw |
| Capacity | 280kg/h |
| Weight | 260kg |
| Barrel Diameter (mm) | 219 |
| Barrel Thickness (mm) | 8 |
You can now ask our project managers for technical details
The Fish Deboner Machine is an efficient fish processing solution to separate high-quality fish meat from bones, skin, and other unwanted parts. Combining the functions of a fish meat separator and grinder, this machine helps recover more usable fish meat while maintaining excellent product quality. It is suitable for processing various types of fish and is widely applied in the production of fish balls, surimi, fish cakes, and other seafood products.
Available in different models with processing capacities from 180 kg/h to 1500 kg/h, the Fish Deboner Machine can meet the requirements of both small seafood businesses and large-scale fish processing plants. With reliable performance and easy operation, it is an ideal choice for food factories, restaurants, hotels, and seafood processing enterprises looking to improve efficiency and reduce fish waste.

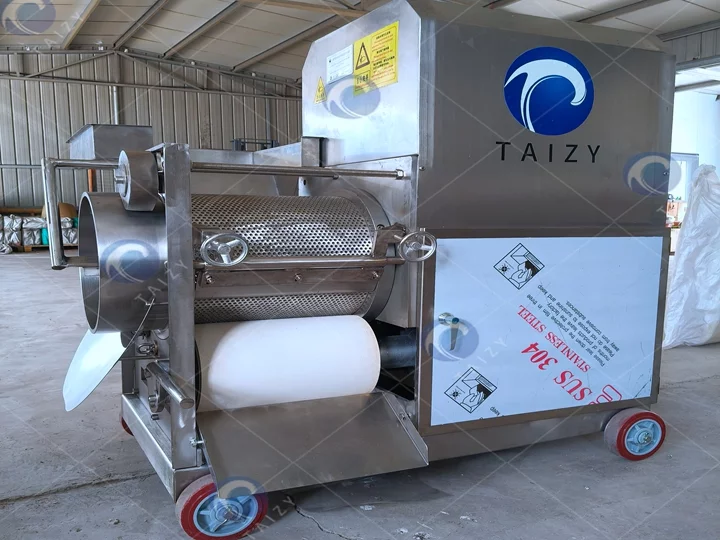

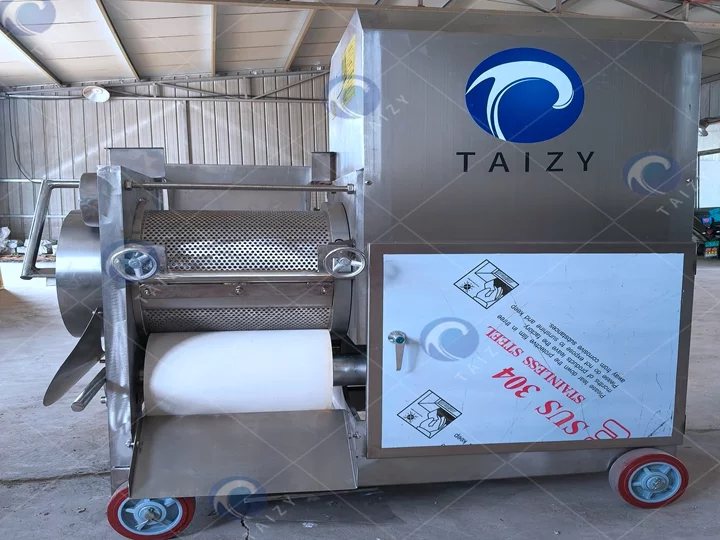

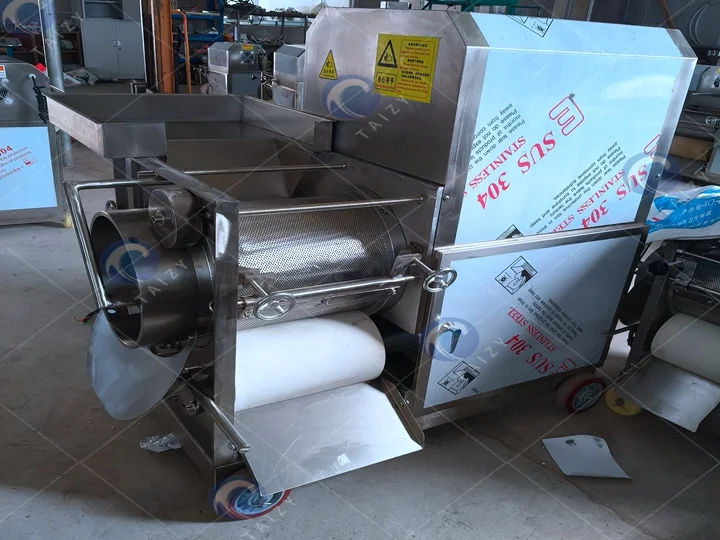

Fish deboner machine structure
The fish deboner machine features a robust and efficient structure designed to streamline fish meat and bone separation. Its key components include:
- Motor and transmission device. These power and control the machine’s operation, ensuring smooth performance.
- Roller with inner scraper: The roller separates fish meat from bones through evenly distributed sieve holes, while the inner scraper removes the meat from the roller wall for efficient collection.
- Meat collector belt. Works alongside the roller to exert pressure, squeezing the fish and enabling the separation of meat and bones.
- Automatic fine-tuning device. Automatically adjusts pressure and resets the gap during operation, ensuring consistent separation quality.
- Scrapers (inner and outer). The inner scraper removes meat from the drum, while the outer scraper clears bones and skin from the roller surface.
- Gap and belt adjustment handles. These allow fine-tuning of the gap between the roller and belt and adjust the belt’s tightness for optimal performance.
- Inlet and outlets. The inlet guides the fish into the machine, while separate outlets handle minced meat and fish bones.
- Meat drum. Collects and processes the separated fish meat effectively.
What is the working principle of the fish meat bone separator machine?
- The fish meat bone separator machine features a meat barrel and a rubber belt for pressing.
- During operation, the rolling meat barrel and rubber belt press fish to extract meat into the barrel.
- Fish skin and bones remain outside the meat barrel and are removed by a scraper.
- Processed fish meat is discharged through a separate outlet.
Characteristics of automatic fish deboner machine
- Constructed with food-grade 304 stainless steel for durability and safety.
- Achieves up to 95% fish meat collection by efficiently separating bones, skin, and ribs.
- Suitable for freshwater and marine fish, processing small fish directly and larger fish after segmentation.
- Supports the production of fish balls, dumplings, tofu, and other fish-based products.
- Compact, efficient, and cost-effective, enhancing the value of low-cost fish while saving labor.
How to use the fish deboner machine correctly?
- For small fish, you can directly feed them into the fish deboner machine without preparation.
- For large fish, remove the viscera and scales before processing; using a scaler and meat cutter is recommended.
- Before operating, inspect the machine for any issues and let it idle for 30 seconds to ensure smooth functioning.
- Avoid placing hands or hard objects into the feed opening during operation.
- After finishing work, turn off the power immediately and clean any remaining fish residue inside the machine.
Fish meat bone separator machine parameters
| Model | Dimension (mm) | Capacity (kg/h) | Power (kW) | Belt Thickness (mm) | Belt Length (mm) | Barrel Diameter (mm) | Barrel Thickness (mm) | Holes Thickness (mm) | Weight (kg) |
| TZ-F150 | 850*680*900 | 180 | 2.2 | 20 | 1195 | 162 | 8 | 2.7 | 220 |
| TZ-F200 | 900*880*950 | 280 | 2.2 | 20 | 1450 | 219 | 8 | 2.7 | 260 |
| TZ-F300 | 1150*870*1060 | 360 | 2.2 | 20 | 1450 | 219 | 8 | 2.7 | 320 |
| TZ-F350 | 1300*1000*1050 | 1500 | 2.2 | 20 | 2500 | 300 | 12 | 4/4.5/5/6 | 750 |
FAQ about fish meat bone separator
Can the machine remove fish bones?
Yes, the mesh diameter can go as small as 3mm, effectively removing fish bones.
Is the machine made entirely of stainless steel?
Most parts are stainless steel, except for the frame and the gear in the motor, which are made of cast iron.
Can the mesh size be adjusted?
The mesh size is adjustable up to a maximum of 5mm.
Do large fish need to be prepped before processing?
Yes, large fish must be eviscerated and scaled. However, small fish can be processed directly without preparation.
Can the machine process fish pieces instead of minced meat?
No, the maximum mesh diameter is 5mm, designed for minced fish meat, not larger pieces.
Conclusion
Looking for an efficient solution to improve your fish processing business? The Fish Deboner Machine offers high meat recovery, stable performance, and easy operation, making it an ideal choice for seafood processing factories, restaurants, and food production companies.
In addition to fish deboning equipment, we also provide a wide range of food processing machines, including bone meat separator machines, fish meat separator machines, and other meat processing equipment to meet different production requirements. Contact us today for more details and choose the right processing solution for your business.
