Meatball making machine processing line
| Model | TZ-1 |
| Voltan | 380V / 50Hz, Three Phase |
| Kapasiti | 500–600 pcs/min |
| Saiz | 1050 × 600 × 1800 mm |
| Berat badan | 160 kg |
Anda kini boleh meminta pengurus projek kami untuk butiran teknikal
The meatball making machine processing line is a fully automated solution for industrial production of beef, pork, chicken, fish, and shrimp meatballs. Depending on the configuration, the forming capacity can reach 280 pcs/min, while the complete line can be customized for larger industrial outputs.
The complete process covers frozen meat crushing, grinding, bowl cutting, forming, constant-temperature cooking, quick freezing to -18°C core temperature, and vacuum packaging. The machines are made of food-grade stainless steel 304, powered by stable three-phase motors (380V/50Hz), ensuring continuous and hygienic production.
This integrated line guarantees uniform meatball sizes (standard molds: 20mm, 25mm, 30mm, customizable), elastic texture, stable quality, and high output.
How does the meatball making machine processing line work?
The meatball making machine processing line operates through a continuous and coordinated series of machines, each responsible for a specific processing stage. The workflow is as follows:

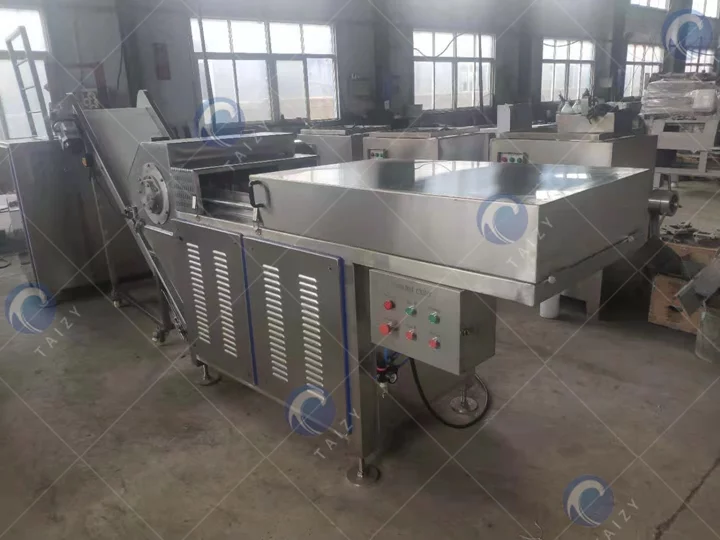

Frozen Meat Crusher
Breaks large frozen meat blocks into smaller pieces, allowing direct processing without full thawing and improving downstream efficiency.
- Voltage: 380V
- Power: 5.5 kW
- Production Rate: 3–5 tan/jam
- Weight: 600 kg
- Machine Size: 1750 × 945 × 1220 mm
- Material: 304 Keluli Tahan Karat
Meat Grinder
Grinds the crushed meat into uniform minced meat through screw extrusion and cutting plates, ensuring consistent particle size.
| Model | SL-100 | SL-120 | SL-160 | SL-200 |
| Kapasiti (kg/j) | 500 | 1500 | 2000-3000 | 3000-5000 |
| Kuasa(kW) | 5.5 | 7.5 | 15 | 22 |
| Berat (kg) | 182 | 358 | 1200 | 1860 |
| Dimensi(mm) | 980*550*900 | 960*550*1080 | 1630*1100*1450 | 1780*1000*1580 |

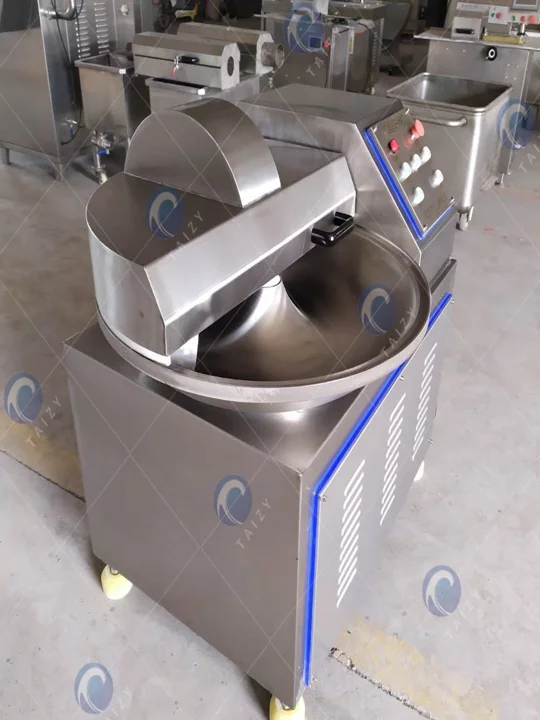

Bowl Cutter (Chopper & Mixer)
Finely chops and emulsifies minced meat while mixing seasonings, starch, ice water, and additives. This step enhances protein extraction and improves elasticity and smoothness.
| Model | SL-20 | SL-40 | SL-80 | SL-125 | SL-200 |
| Kapasiti Pemprosesan (kg/masa) | 10–15 | 20–30 | 40–50 | 70–80 | 100–140 |
| Kapasiti Pot (L) | 20 | 40 | 80 | 125 | 200 |
| Kuasa (kW) | 2.55 | 6.25 | 23 | 27 | 63 |
| Kuantiti Bilah | 3 | 3 | 6 | 6 | 6 |
| Kelajuan Pot (r/min) | 16 | 12 | 8/12 | 8/12 | 8/12/16 |
| Dimensi (mm) | 770×650×980 | 1245×810×1094 | 2300×1020×1195 | 2400×1420×1300 | 2580×2400×1960 |
| Berat (kg) | 215 | 480 | 1100 | 1300 | 3800 |

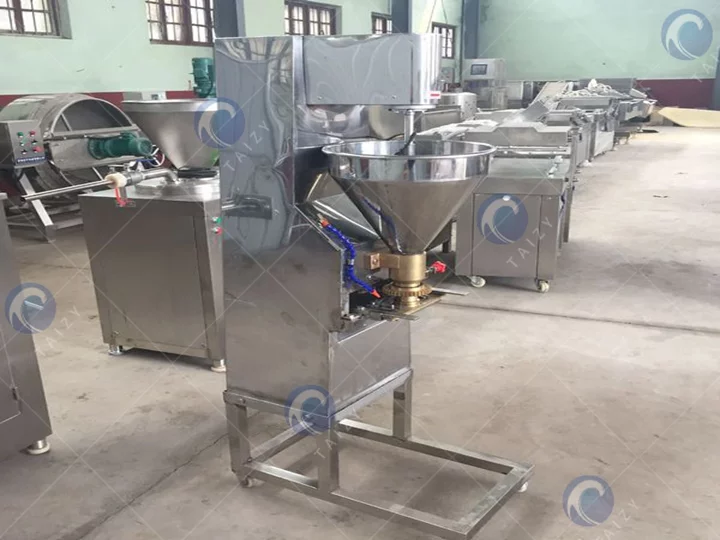

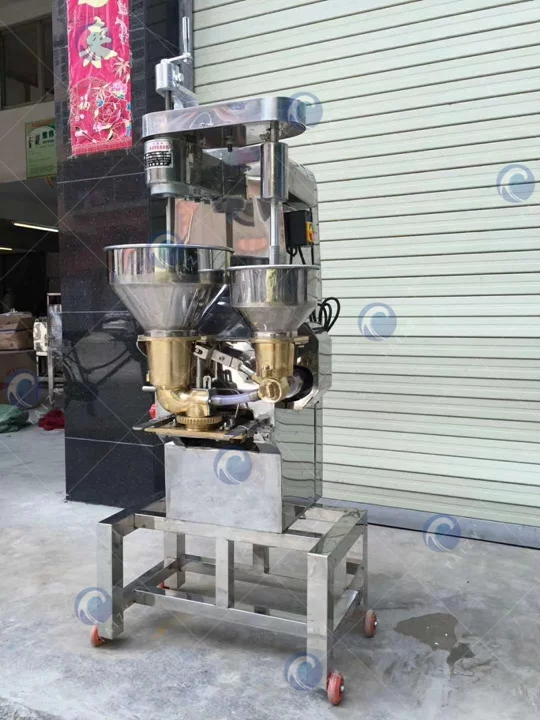

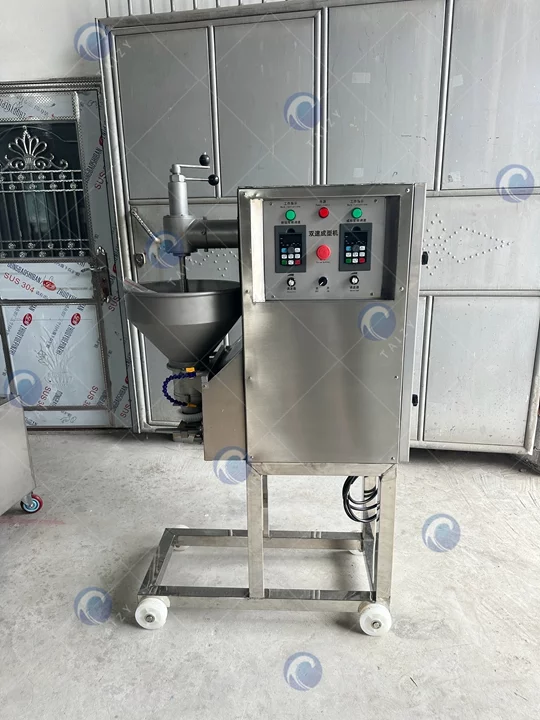

Meatball Forming Machine
Automatically extrudes and cuts the prepared meat paste into evenly sized and smooth meatballs. The diameter can be adjusted according to production needs.
| Model | TZ-1 |
| Voltan | 380V / 50Hz, Three Phase |
| Kapasiti | 500–600 pcs/min |
| Saiz | 1050 × 600 × 1800 mm |
| Berat badan | 160 kg |

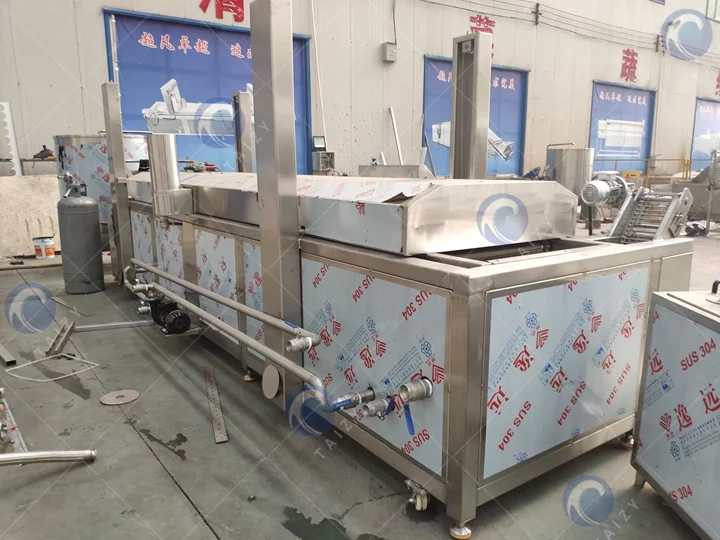

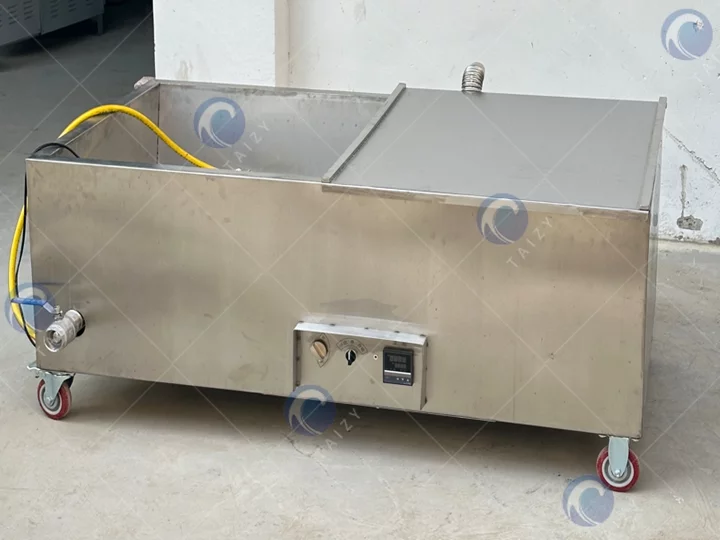

Constant-Temperature Cooking Machine or Continuous Frying Machine
- The cooking machine heats meatballs in controlled hot water to fully set the protein structure and maintain elasticity.
- The frying machine produces golden, crispy meatballs with automatic oil temperature control.
| Model | TZ-1500 |
| kuasa | 18 kW |
| Voltan | 380V / 50Hz, Three Phase |
| Saiz | 1500 × 800 × 600 mm |
| Machine Model | TZ-10 |
| Electric Heating Tube Power | 252 kW |
| Heating Method | Electric heating |
| Frying Temperature | 160–260°C |
| Frying Time Control Range | 40 seconds – 4 minutes, variable via frequency control |
| Standard Frying Time | 60 seconds |
| Machine Dimensions (L × W × H) | 8500 × 1800 × 2000 mm |
| Conveyor Belt Width | 800 mm |
Quick Freezing Machine
Rapidly lowers the core temperature to preserve texture, lock in flavor, and extend shelf life.
| Model | TZ-30 |
| Saiz | 1900 × 940 × 2150 mm |
| Volume | 1200 L |
| Voltan | 380V / 50Hz, Three Phase |
| kuasa | 5 kW |
| Trayers | 30 |
| Trolleys | 2 |
| Suhu | Under 45°C |
| bahan | Stainless Steel |

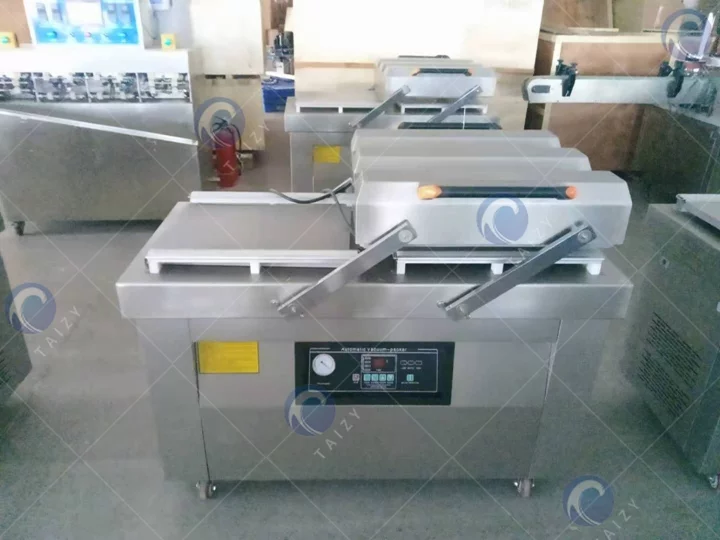

Packaging Machine
Uses vacuum systems to pack finished meatballs for storage, transportation, and retail sale.
| Model | TZ-600 |
| Voltan | 380V / 50Hz, Three Phase |
| Kuasa Motor | 2.2 kW |
| Kuasa Penutup | 3 kW |
| Panjang Penutup | 600 mm |
| Lebar Penutup | 10 mm |
| Saiz | 1460 × 605 × 965 mm |
| Berat badan | 300 kg |
Supporting machine in meatball making machine processing line

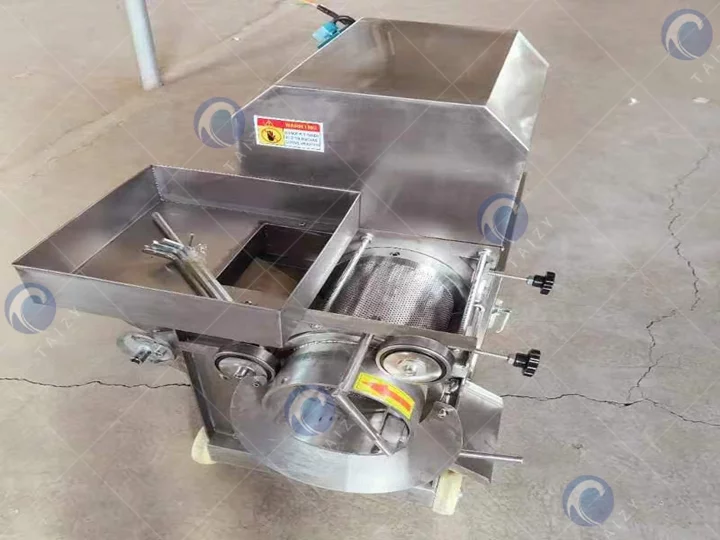

When producing fish balls, a fish meat separator (fish deboner machine) can be added at the beginning of the meatball making machine processing line. This supporting machine is specially designed to separate pure fish meat from fish skin and bones through a squeezing and filtering system. It significantly improves raw material utilization while ensuring clean and fine fish paste for further processing.
By integrating the fish meat separator before grinding and bowl cutting, the production line becomes more suitable for surimi-based products such as fish balls, shrimp balls, and other seafood meat products. The separated fish meat can directly enter the bowl cutter for emulsification and seasoning, ensuring a smooth texture and excellent elasticity.
| Model | TZ-300 |
| kuasa | 3 kW |
| Voltan | 380V / 50Hz, Three Phase |
| Kapasiti | 400 kg/h |
| Saiz | 1050 × 700 × 950 mm |
| Berat badan | 240 kg |
Why need to buy our meatball making machine processing line?
- Food-Grade Stainless Steel 304 Construction
- The entire line is made of thickened SS 304, ensuring hygiene, corrosion resistance, and long service life. Equipped with a pure copper motor for stable and durable operation.
- Complete & Professional Processing Solution
- From meat grinding to fine meat paste pulping and automatic forming, the line ensures smooth workflow and consistent product quality.
- High-Speed Production
- The meatball forming machine can reach up to 280 pcs/min, significantly improving productivity for commercial production.
- Multiple Meatball Sizes Available
- Standard molds of 20mm, 25mm, and 30mm are provided. Custom mold sizes are available to meet different market demands.
- Wide Application Range
- Suitable for beef, pork, chicken, fish, and other meatballs. Separate solutions are available for both solid meatballs and stuffed meatballs.
- Fine Texture & Better Elasticity
- The meat pulping system ensures smoother paste and better protein extraction, resulting in elastic and uniform meatballs.
- Labor-Saving & Cost-Effective
- High automation reduces manual labor, lowers production costs, and eliminates repetitive hand-forming work.
- Long-Term Investment Value
- Durable structure, stable performance, and large capacity make it an ideal choice for factories aiming at scalable and efficient meatball production.
Kesimpulan
In conclusion, our Meatball Making Machine Processing Line offers a complete, efficient, and reliable solution for modern meat product manufacturing. From frozen meat crushing to final packaging, every step is precisely designed to ensure high output, uniform quality, and stable performance.
In addition to the meatball processing line, we also supply a wide range of meat processing machines. Feel free to contact us for detailed specifications, videos, and a competitive quotation. We warmly welcome your inquiry and look forward to helping you expand your meat processing business.
